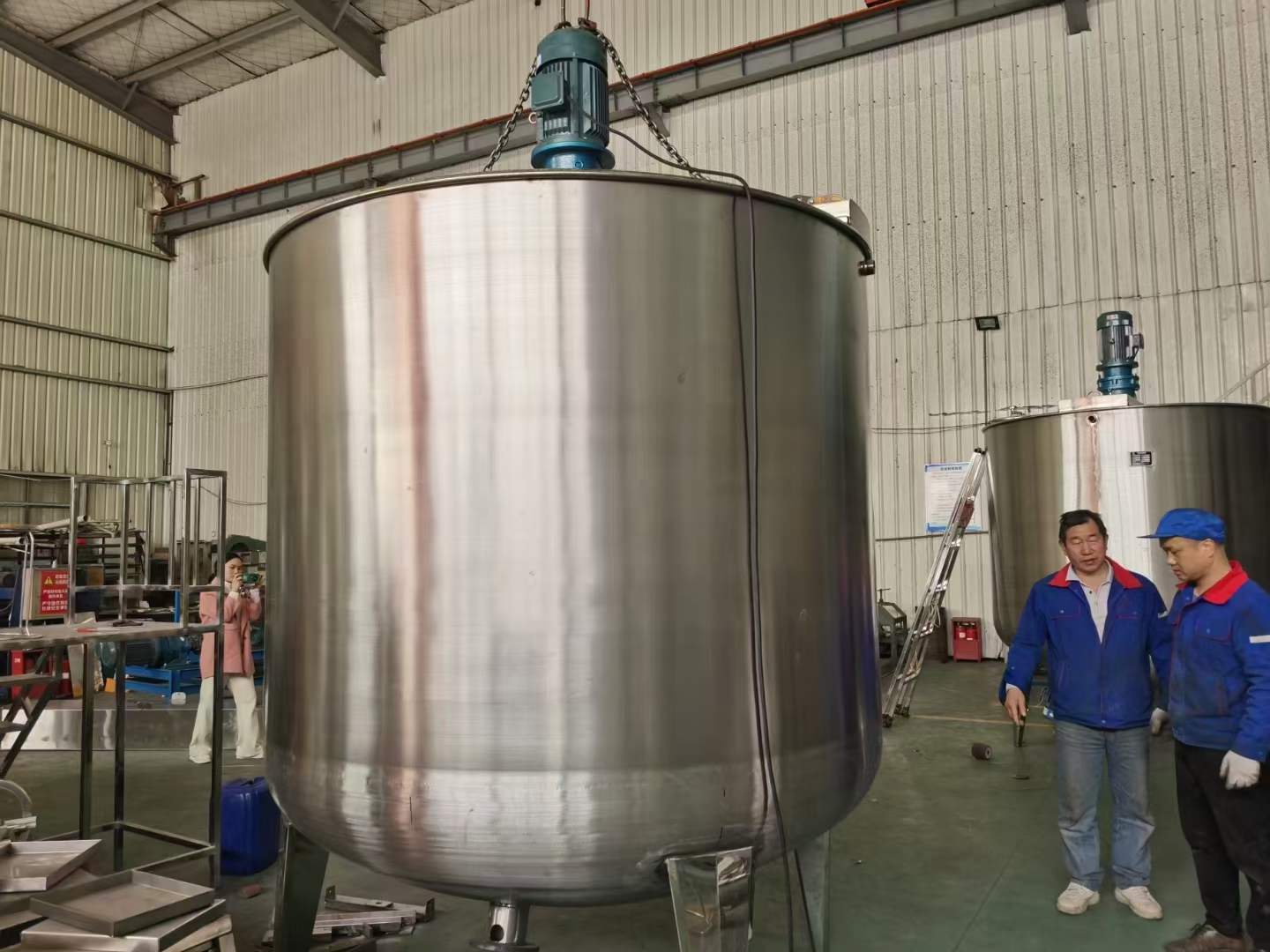

Six tons volume reactor configuration, equipment volume of 6000 liters, material 304 stainless steel, wall thickness of 5 mm, upper mixer + variable frequency governor 0-150 RPM, two high-speed shear dispersion machine at the bottom, side DN50 diaphragm perfluorination machine for circulation emulsification and rapid discharge and raw material feeding. The equipment adopts thick flow blocking and porous slow pressure. The production water enters the equipment with bottom bubble reducing device, standard automatic control cabinet, DN50 fully open butterfly valve at the bottom, and online detection port of side sample.

The total weight of the equipment is 1600 kg, the diameter of the equipment is 2200 mm.

Equipment features: The production time is twice shorter than that of traditional mixing equipment, the product stability is more than double, and the service life of the equipment is more than 20 years.
